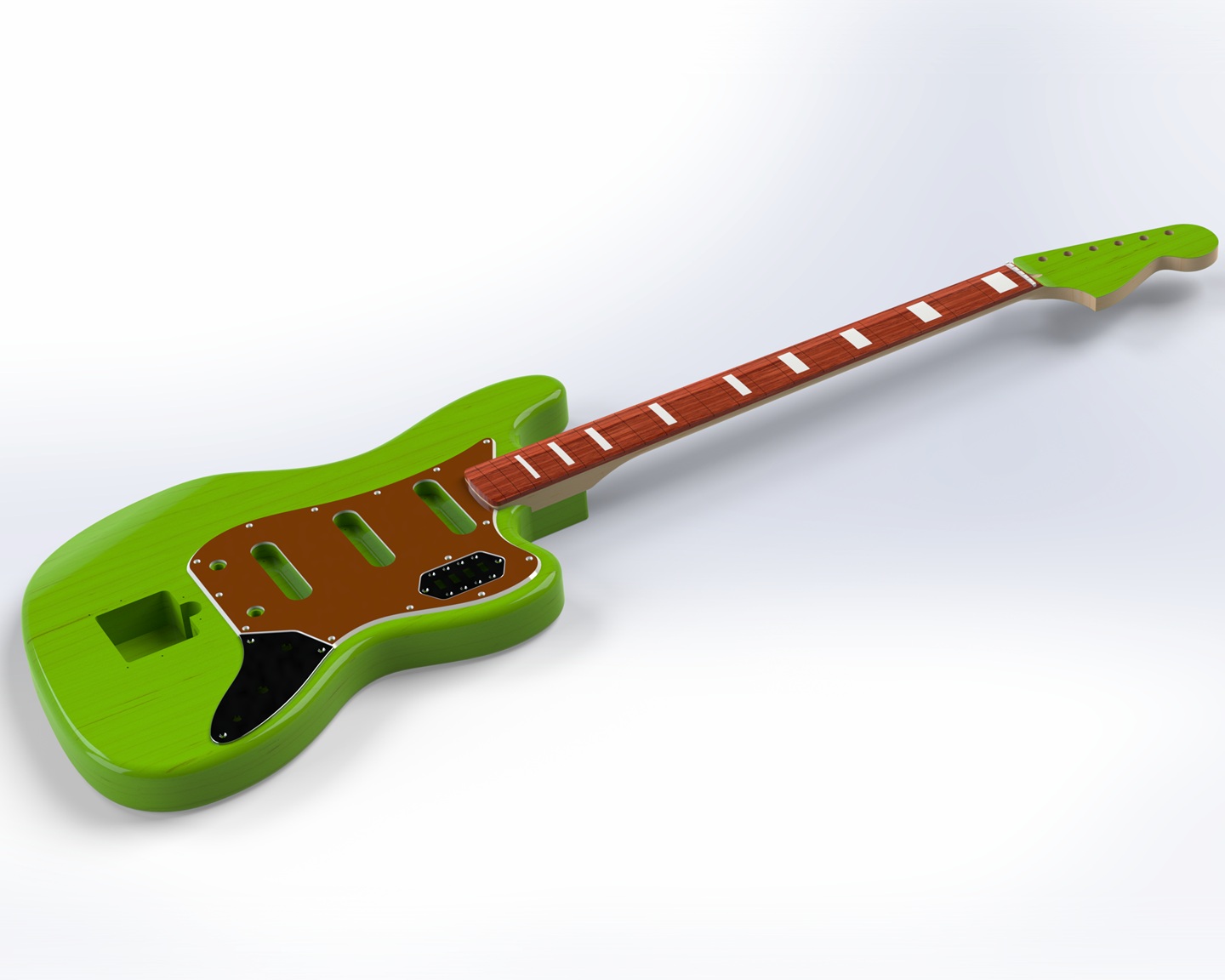

Fender Squier Classic Vibe VI Bass 01_3D_1

Fender Squier Classic Vibe VI Bass 01_3D_2

Classic Vibe Bass VI – 3D Model CAD Files

Original price was: $50.Current price is: $25.

What will you receive after the purchase?

The files will automatically start downloading after the purchase and also you are going to receive a mail with the ZIP file attached. Files included (1 ZIP).

SolidWorks Files: Body.SLDPRT, Control Plate.SLDPRT, Fretboard.SLDPRT, Neck.SLDPRT, Nut.SLDPRT, Pickguard.SLDPRT, Switch Plate.SLDPRT, Assembly.SLDASM.
STEP Files: Body.STEP, Control Plate.STEP, Fretboard.STEP, Neck.STEP, Nut.STEP, Pickguard.STEP, Switch Plate.STEP.
IGES Files: Body.IGS, Control Plate.IGS, Fretboard.IGS, Neck.IGS, Nut.IGS, Pickguard.IGS, Switch Plate.IGS.

About the Guitar

These plans are based on the traditional Fender Squier Classic Vibe Bass VI Bass guitar: 30” scale, Jaguar Pickups, bolt-on neck and Jaguar/Jazzmaster Bridge and Tremolo.

If you need any variation of this bass guitar just let me know!

… more information in the description below (guitar specifications).

Category: 3D Guitars and Basses Tags: 3D, 3D Model, Bass VI, Squier

Description
Reviews (0)

Description

Guitar Specifications:
– Scale Length: 762mm (30”).
– Fingerboard Radius: 241.3mm (9.5”).
– Number Of Frets: 21.
– Neck Profile: C-Shaped.
– Nut Width: 42.799mm (1.685”).
– End Of Board Width: 56.49mm (2.224”).
– Headstock Thickness: 14.986mm (0.59”).
– Neck Thickness:
– 1st Fret: 21.54mm (0.848”).
– 12th Fret: 23.318mm (0.918”).
– Peg Hole Diameter: 8.73mm (0.3437”).
– Neck Joint: Bolt-On.
– Truss Rod: Traditional.
– Inlays: Square Blocks.
